Modern Lift & Slide Door

Series 1512

Window City has developed the 1512 Series of lift and slide patio doors as the next generation of advanced patio door systems, offering high thermal insulation, modern aesthetics, superior performance in wind and water tightness, security and acoustic performance. Its sleek, European-inspired design suits both new builds and renovations, providing flexibility and style for contemporary homes.  With a 1” interlock, the 1512 Series offers the largest available glass for your given door size, allowing for more light to enter the home and the most visually appealing product on the market, all without sacrificing performance.

Innovation Meets Functionality

Series 1512 Modern Lift & Slide

  • Minimal and innovative design with only 25 mm of visible aluminum face width at the interlocking profile, for the most modern design
  • High energy savings thanks to the exceptional energy efficiency
  • Great ease of use and high functionality
  • Easy to clean frame, with invisible water evacuation and less visible depth
  • Wide variety of Configurations with integrated insect screen
  • Exceptional quality with certified performance

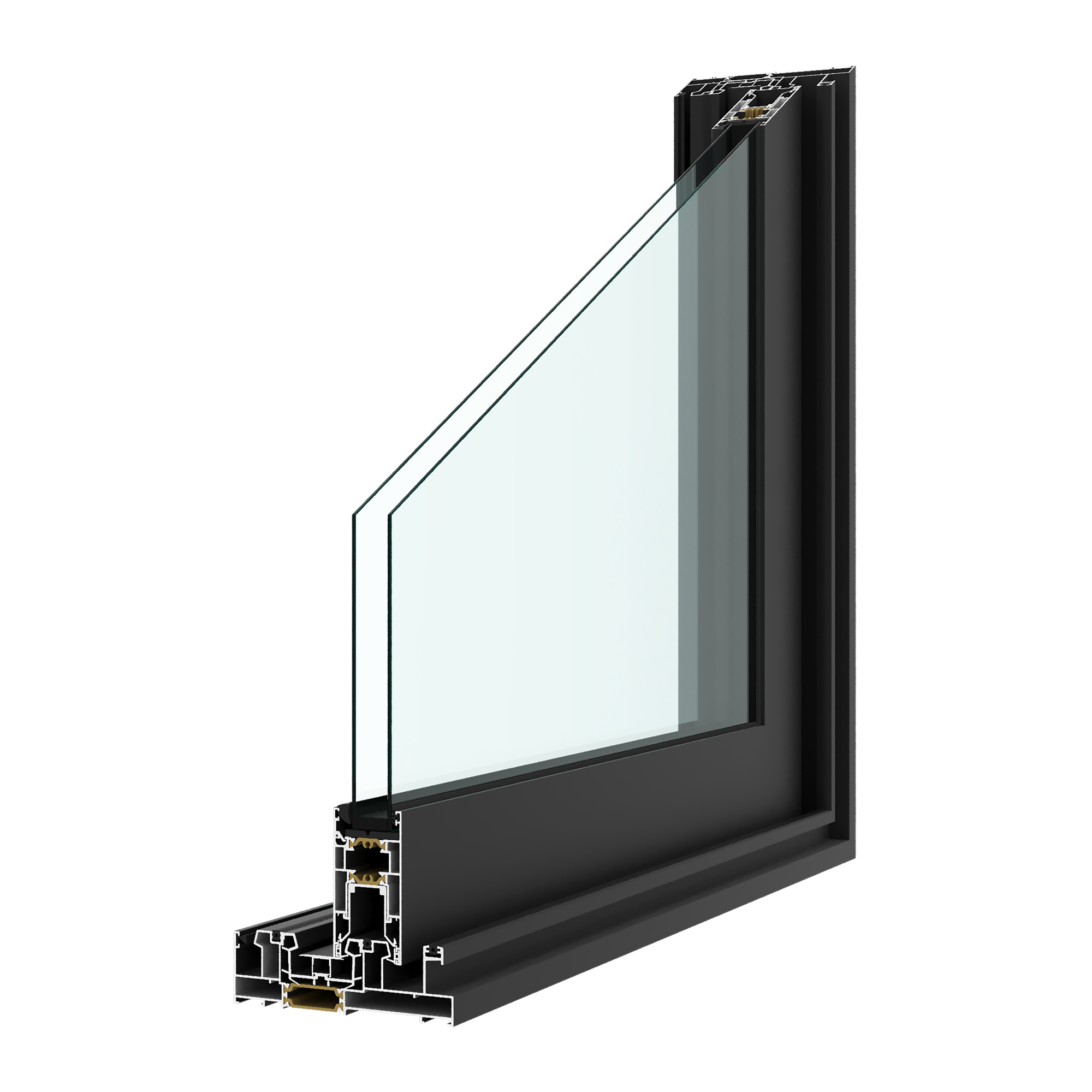

M450-Patio_Door-Section-R02

Hardware

Hardware may not be top of mind when choosing the right window for a project, but it’s an important part of achieving the right look and ensuring you have a sliding door that operates smoothly and stands up for years to use.

Our handles are available in a wide range of colours and applications.

Elegant Handles

white

White

Matte Black 2

Matte Black

light silver

Light Silver

Titanium

Titanium

Available in any other colours, may require longer delivery time.

Hardware

Hardware may not be top of mind when choosing the right window for a project, but it’s an important part of achieving the right look and ensuring you have a sliding door that operates smoothly and stands up for years to use.

Our handles are available in a wide range of colours and applications.

Frame Colour

Your windows define the character of your home. That’s why we offer the Structura range of Interpon D powder coatings, designed to bring both beauty and durability to your space. With over 40 stunning RAL colour options, you can choose a shade that reflects your style, personality, and vision.

Our powder coatings comply with the AAMA 2604 standard which provides 10 years of warranty against fading, peeling, cracking and chipping.

Standard

Matte Black

Matte Black

RAL 9005

Additional Options

Anthracite Grey

Anthracite Grey

RAL 7016

Quartz Grey

Quartz Grey

RAL 7039

Terra Brown

Terra Brown

RAL 8028

Platinum Grey

Platinum Grey

RAL 7036

Our standard color, RAL 9005 Structura Matte Black, is readily available. Additional RAL colors, as well as painted finish, wood grain finishes, sublimation and anodizing, are available upon request but may require extended delivery times.

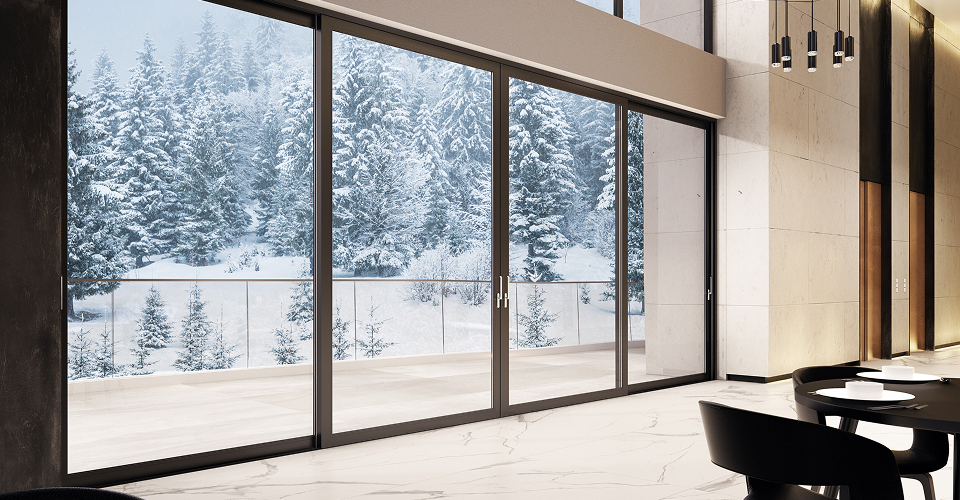

Rectangle 695 (1)

Configurations

2 Sashes / 2 Tracks

2 Sashes / 2 Tracks

2 Sashes / 2 Tracks

4 Sashes / 2 Tracks

4 Sashes / 2 Tracks

Glass Packages

Glass Warranty

At Window City, we manufacture all our Glass Packages with 4SG (TPS) sealed units, featuring the most advanced spacer technology on the market. This chemically bonded seal ensures superior durability while keeping Argon gas securely trapped between the double, triple, or quad panes, maximizing insulation and efficiency.

Double Pane IG

Performance Values

Centered-of-Glass

Insulating Glass Unit

Low-E 272

Low-E i89

U-Value

0.20

Solar Heat Gain

0.41

Visible Light

72%

R-Value

5.00

Triple Pane IG

Performance Values

Centered-of-Glass

Insulating Glass Unit

Low-E 272

Low-E 180

Low-E i89

U-Value

0.105

Solar Heat Gain

0.36

Visible Light

62%

R-Value

9.483

Laminated

Upgrade your high performance glass package with Laminated Security Glass.

Our fully automated, in-house laminated glass line is designed for strength, safety, and comfort. It reduces noise, blocks UV rays, and protects against intruders—all while enhancing your living space. Made from two or more glass layers bonded with SentryGlas, PVB, or EVA, laminated glass is a trusted choice wherever safety matters most.

Tempered

Upgrade your high performance glass package with Tempered Safety Glass.

At Window City, we manufacture tempered glass with safety in mind. As a trusted form of safety glass, it undergoes thermal treatment to increase strength and durability. Four times stronger than standard glass, it shatters into small, dull fragments to reduce injury. With exceptional heat resistance, tempered glass is a required choice for many safety-critical applications.

Laminated & Tempered

Upgrade your high performance glass package with Tempered & Laminated Glass.

Our fully automated, in-house tempering and laminating lines allows us to offer the sealed units combined with the benefits of both glass types, offering superior strength, safety, and sound insulation compared to standard glass; tempered glass provides high impact resistance while the laminated layer adds further security by holding the shattered pieces together upon impact, making it ideal for applications where safety is paramount, like storefront windows or entry doors.
